Main technical parameter
|
Model
|

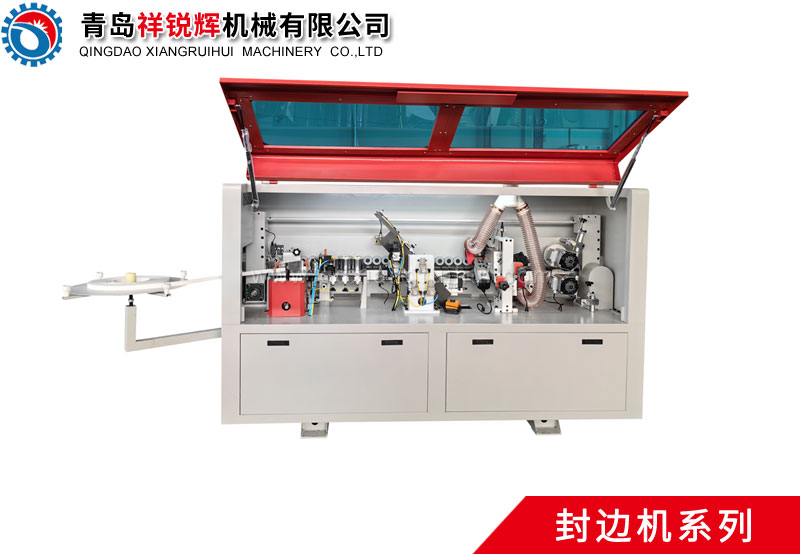

MF60B
|
|
Motor power |
9.33kw |
|
Overall size |
2500×900×1500mm |
|
Feed speed |
15/min |
|
Panel thickness |
9-50mm |
|
Edge banding tape thickness |
0.4-2mm |
|
Panel width |
≥80mm |
|
Working air pressure |
0.8Mpa |
|
Weight |
768KG |
|
(Compression beam)
|
原平钢板16mm
|
件
|
|
|
(Pneumatic components)
|
国产品牌(航远)
|
套
|
|
|
(End-to-end guide rail)
|
精锐
|
根
|
合资
|
|
(Flush cylinders and accessories)
|
亚德客
|
套
|
浙江
|
|
(Flush Motor)
|
长川0.55kw*2个
|
台
|
烟台海阳
|
|
(Repair the motor)
|
长川0.75kw*2个
|
|
烟台海阳
|
|
(Conveying motor)
|
1.5KW
|
台
|
深圳鸿升 |
|
(Polishing motor)
|
0.18kw *2个
|
台
|
国产品牌纯铜电机
|
|
(The rubber box is heated)
|
3KW
|
|
|
|
(Rubber box transmission)
|
0.37kw
|
|
|
|

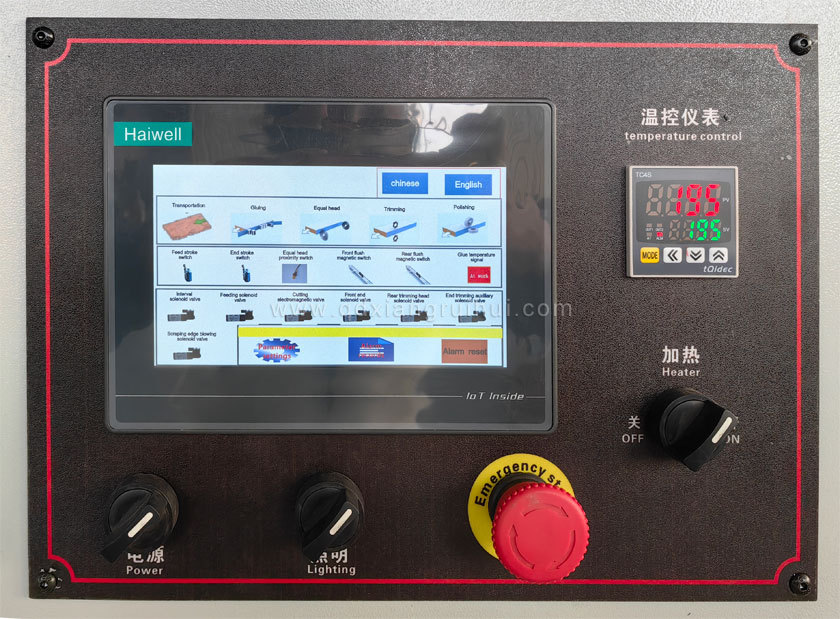

(The operating system)
|
台达控制
|
台
|
台湾
|
|
PLC total distance)
|
台达
|
台
|
台湾、国产名牌
|
|
(Temperature Controller)
|
金四维温控表
|
台
|
国产品牌
|
|
(Frequency converter)
|
海利普
|
台
|
国产品牌
|
|
(Electrical appliances)
|
浙江天正
|
台
|
|
|
(Trip switch)
|
浙江正泰
|
台
|
|
|
(Weight of the fuselage)
|
768KG |
|
|
|
(Total power)
|
9.33kw
|
|
|
|
(Shape size)
|
2500×900×1500mm
|
|
|
